The "PILLARS SUPPORT" is used as a support for the curved sections of blocks. It is typically used at a height of 10 meters, and for heights exceeding this, it can be used with the use of connecting pieces. Its main components include the main body, slide pipe, main pipe, intermediate connecting piece, lower adjustment pipe, and upper adjustment pipe. It can be manufactured with specifications tailored to the specific usage requirements.

■ 5.5M PILLAR

        / PILLARS

The "PILLARS" is used as a support for the curved sections of blocks. It is typically used at a height of 10 meters, and for heights exceeding this, it can be used with the use of connecting pieces. Its main components include the main body, slide pipe, main pipe, intermediate connecting piece, lower adjustment pipe, and upper adjustment pipe. It can be manufactured with specifications tailored to the specific usage requirements.

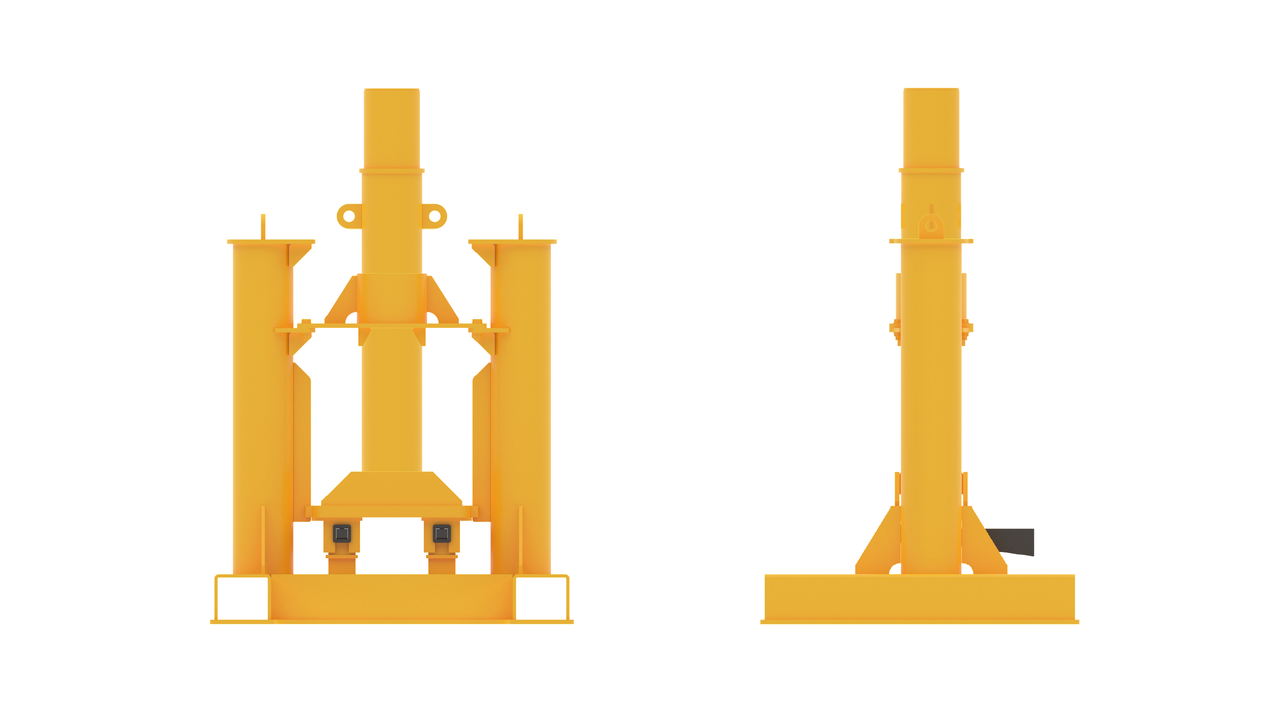

■ 5.5M PILLARS

  • size : 1600L x 1600B x 1690H
  • weight : 1.2ton
  • S.W.L : 50ton~200ton
  • slide pipe : 3.5m~5.5m


■ 8M PILLARS

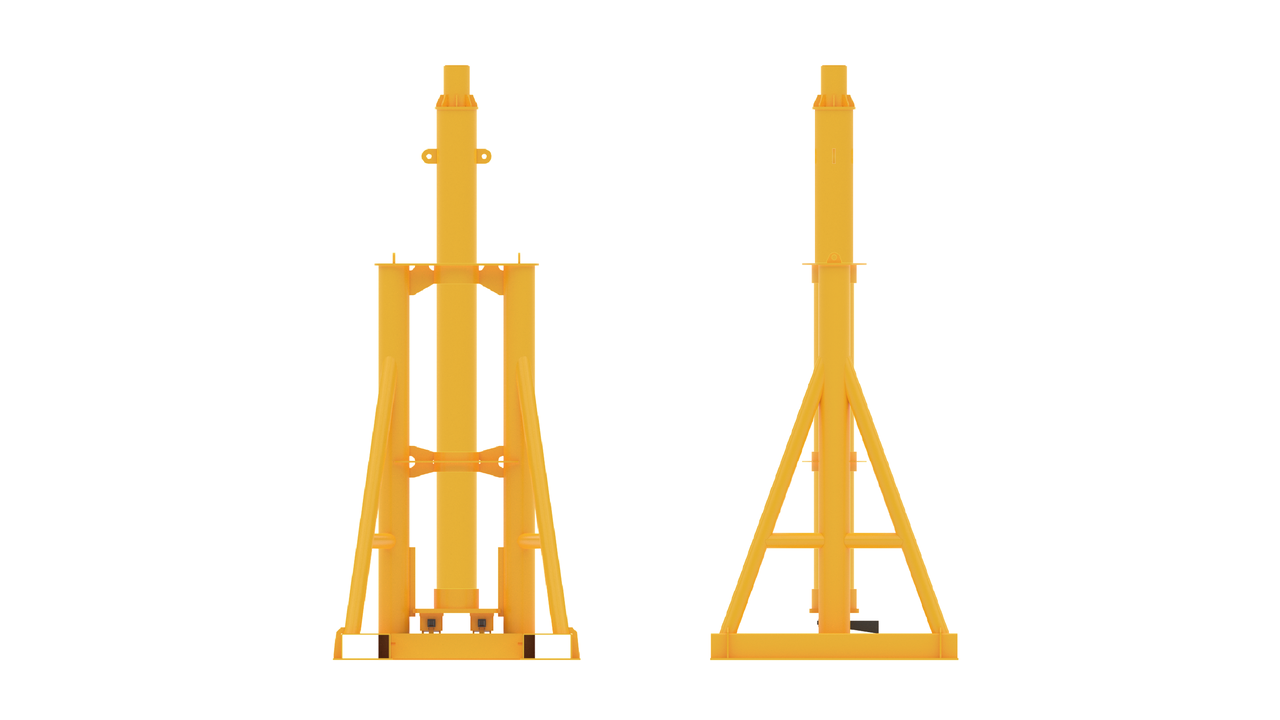

■ 6~10M PILLAR

  • size : 2500L x 2500B x 4000H
  • weight : 2ton
  • S.W.L : 50ton~200ton
  • slide pipe : 5.5m~9.5m


■ 8M PILLARS

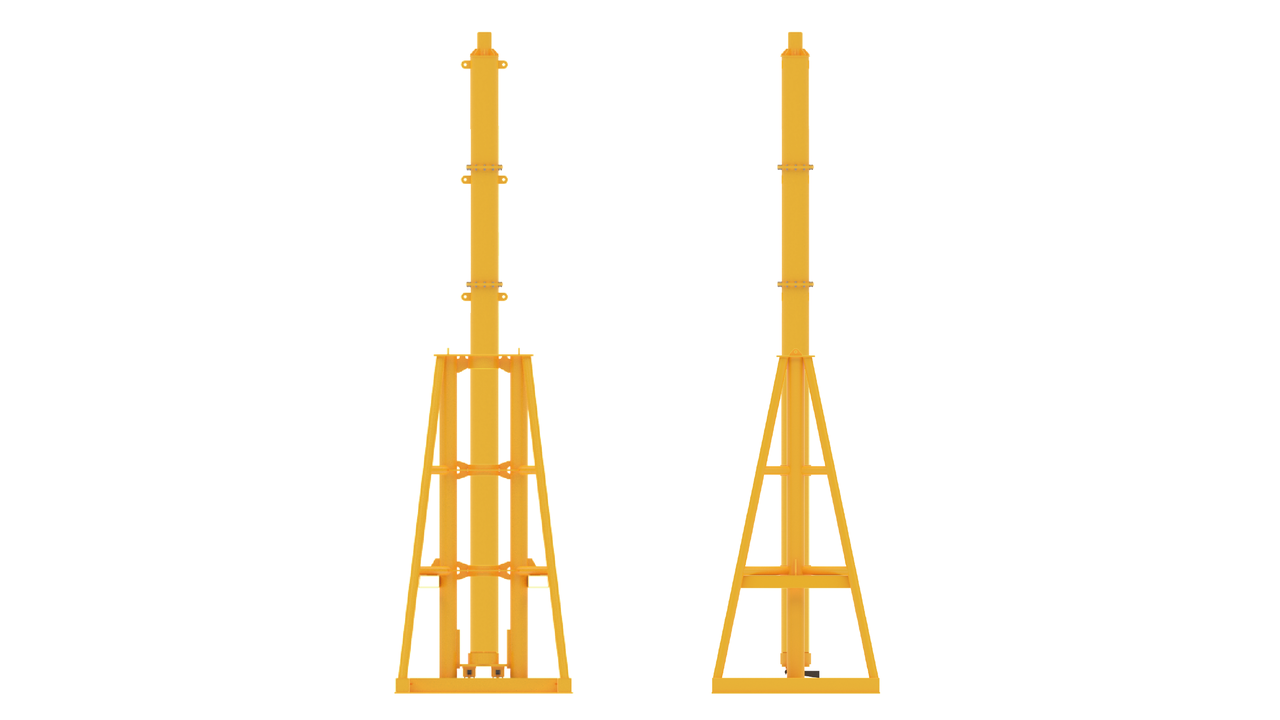

■ 11~20M PILLAR

  • size : 3200L x 3020B x 6070H
  • weight : 4.5ton
  • S.W.L : 50ton~200ton
  • 11m~15m : main pipe + upper pipe(1m~4.5m)
  • 18m~20m : main pipe + middle pipe(4m~5m) + upper pipe(4.5m)

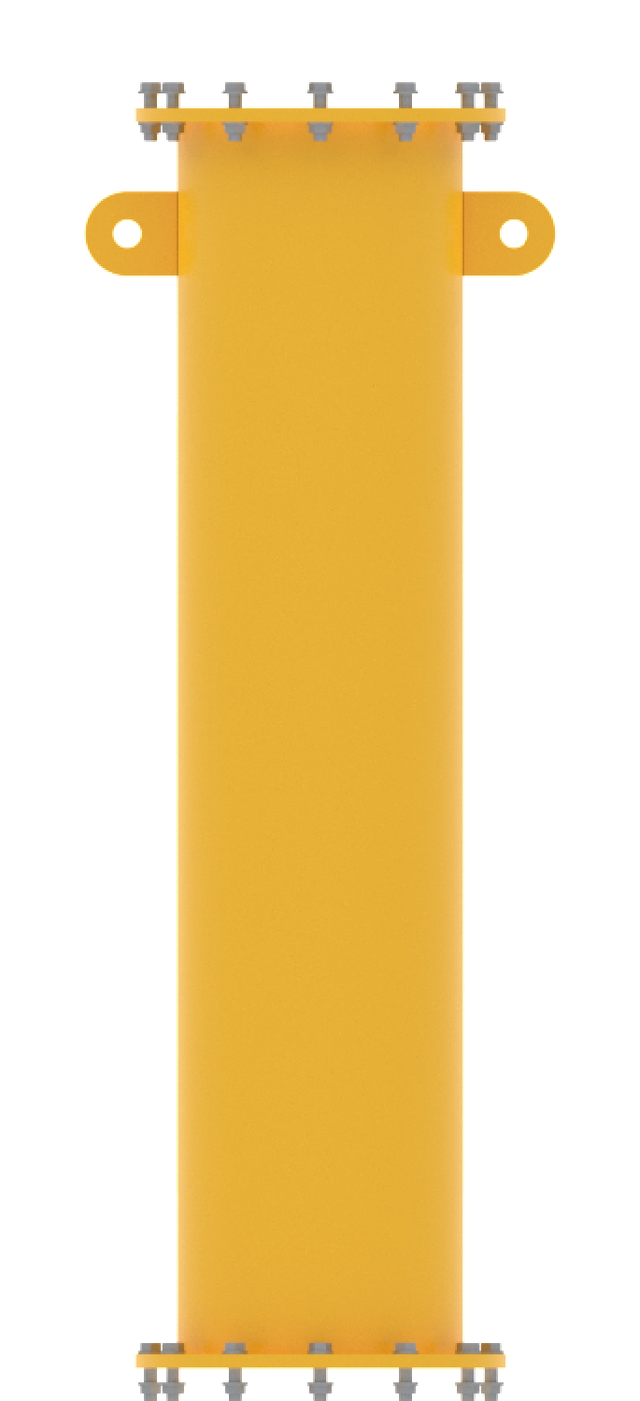

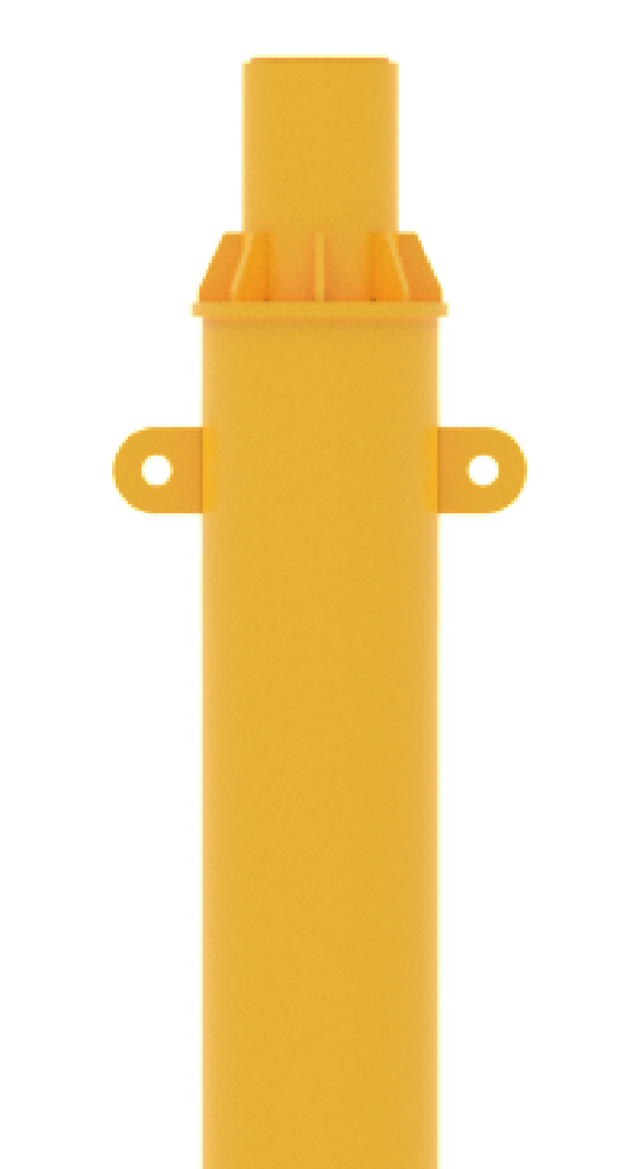

              •  Main Pipe

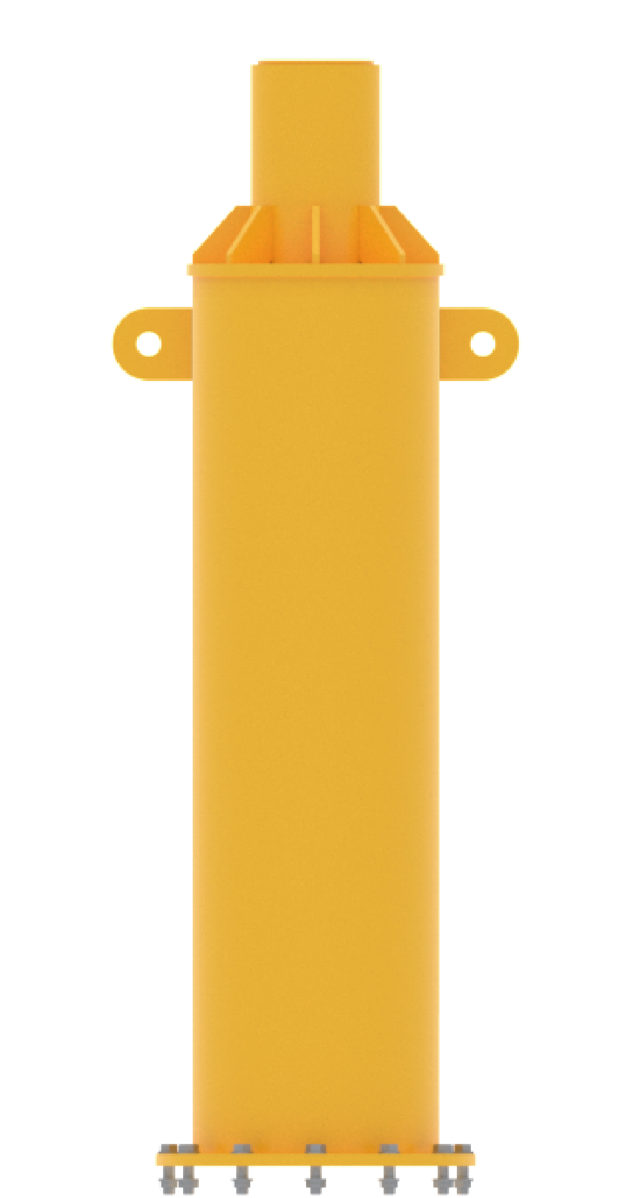

             •  Middle Pipe

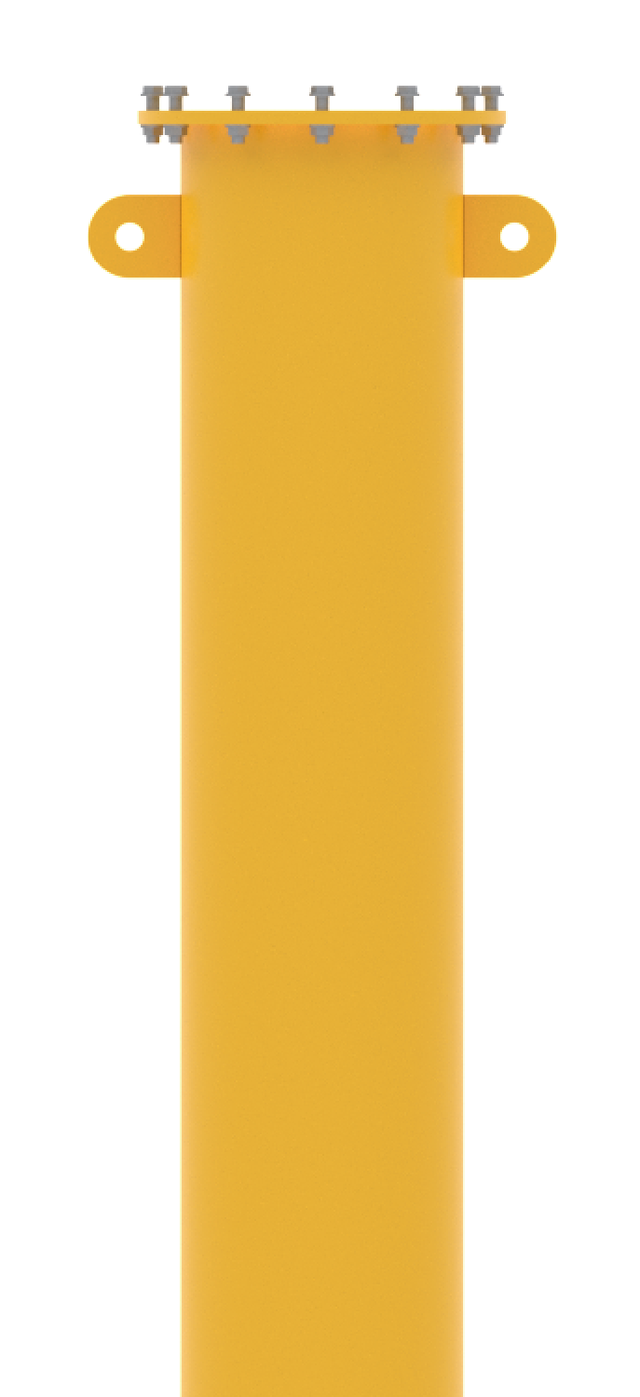

             •  Upper Pipe



              •  Slide Pipe

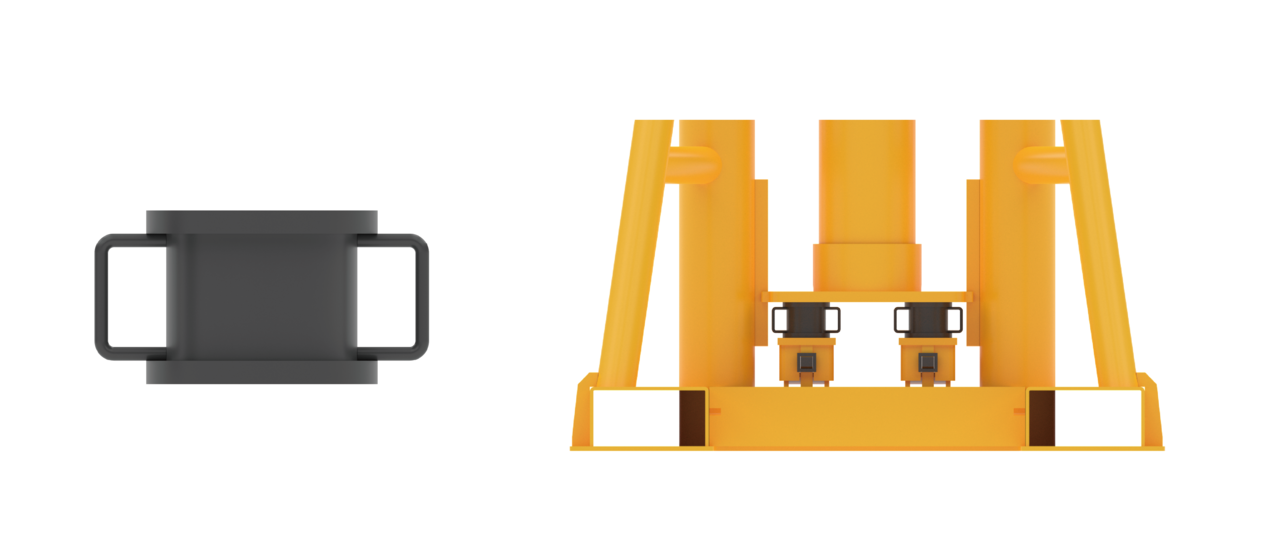

•  100mm Height Block

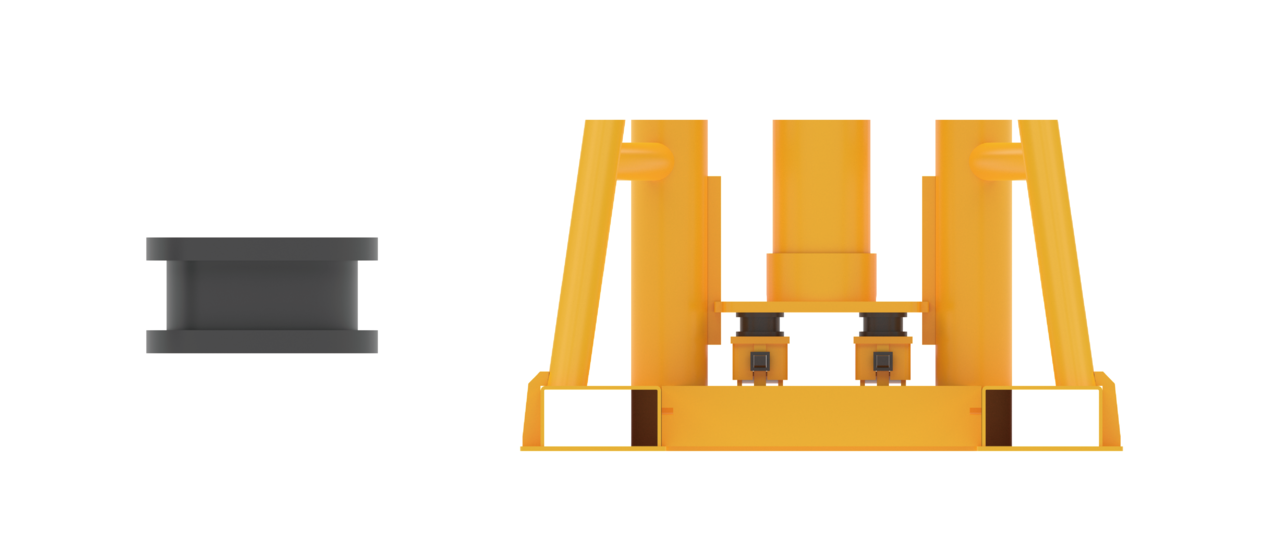

•  150mm Height Block

* Those over 10m use Connection-type and is installed after adjusting heigh through BOLTING process
