BLOCK SUPPORT
(주)흥진티엔디는 끊임없는 노력으로 고객만족을 실현하고자 합니다.
SCREW JACK

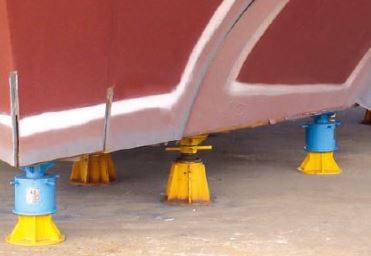

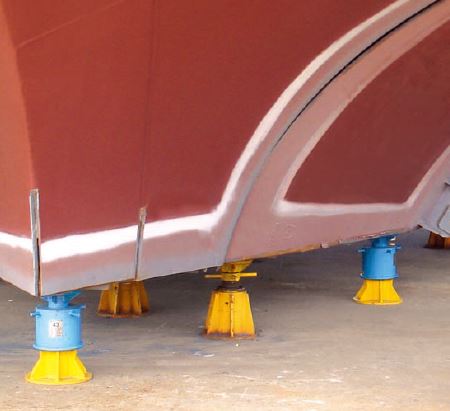

100TON SCREW JACK (BELLOWS TYPE)
- SIZE : Ø480 X Ø400 X 550H
- WEIGHT : 175KG
- STROKE : MIN650 ~ MAX750 (200STROKE)
- CUSTOMIZING AVAILABLE

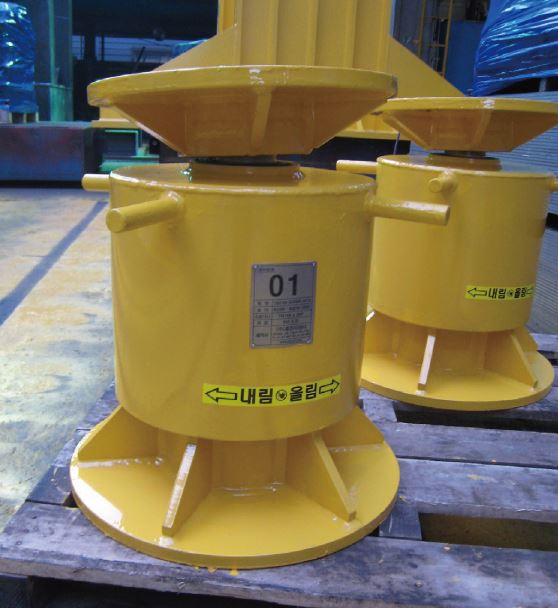

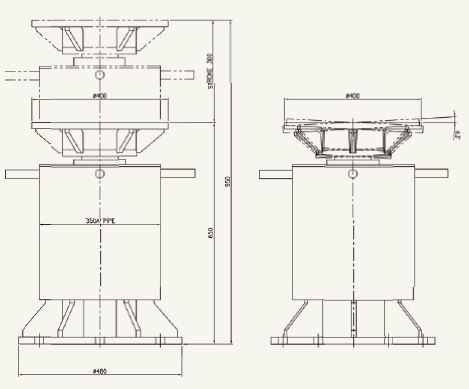

100TON SCREW JACK (PIPE TYPE)
- SIZE : Ø480 X Ø400 X 650H
- WEIGHT : 227KG
- STROKE : MIN650 ~ MAX950 (300STROKE)
- CUSTOMIZING AVAILABLE

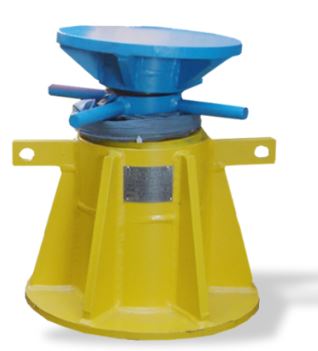

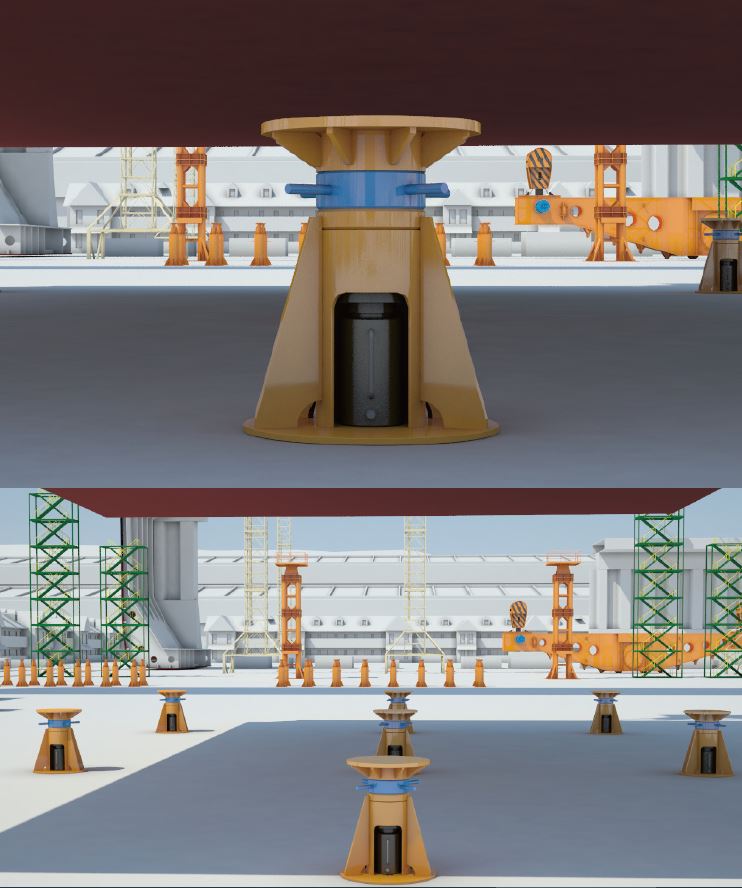

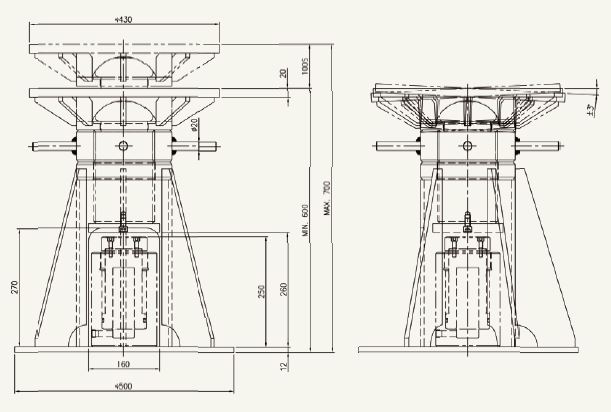

80TON SCREW JACK (HYD' JACK TYPE)
- SIZE : Ø500 X Ø430 X 600H(100STROKE)
- WEIGHT : 160KG
- STROKE : MIN600 ~ MAX700 (100STROKE)
- CUSTOMIZING AVAILABLE
※ CUSTOMIZING DESIGN AVAILABLE !
SCREW JACK SUPPORT

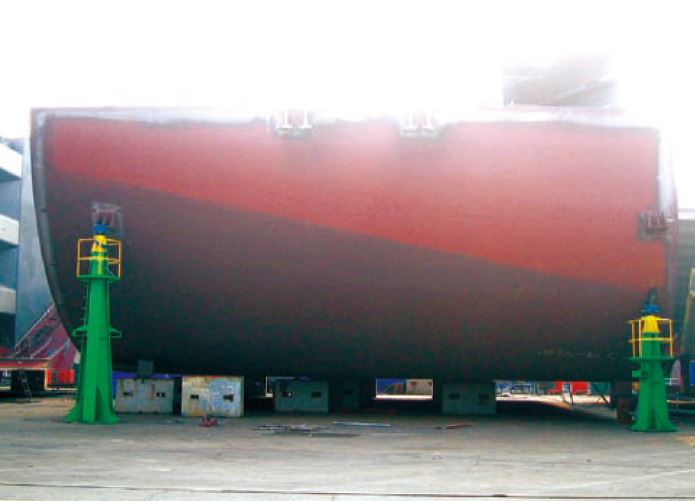

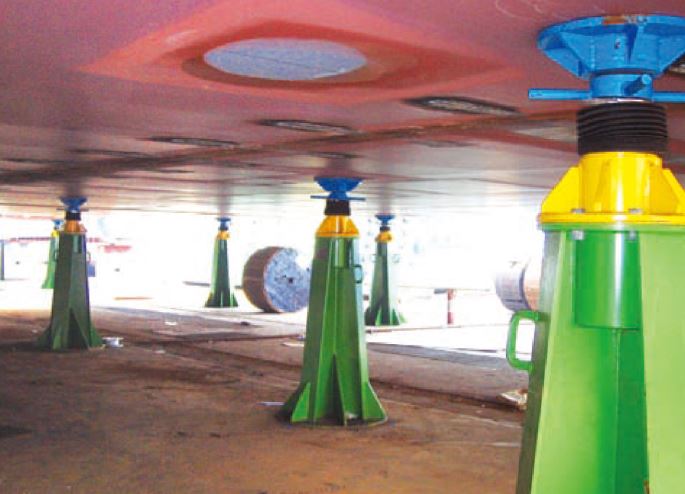

100TON SCREW JACK SUPPORT
- SIZE : 900L X 900B X 1800H
- WEIGHT : 540KG
- SCREW SIZE : TR148 X20P
- STROKE : MIN1800~ MAX2000 (200STROKE)
- USE FOR : BLOCK SUPPORT
